Description
BDK sensors are dynamic accelerometers that are capacitive spring-mass based, with incorporated sensor electronics. Resonance peaks are minimised by means of a special gas-dynamic damping in the
primary transformer . With very low power consumption, these sensors are characterised by very low drift (or error) and long-term stability.
Applications
These accelerometers are used for applications requiring high overload tolerance, high long-term stability, small lower cut-off frequency, light weight and low power consumption.
Typical applications include:
measurements on vehicles, machinery, buildings, and plants for process control and error diagnosis
seismic measurements
vibration measurements
safety engineering
dynamic measurement of position & velocity
Features

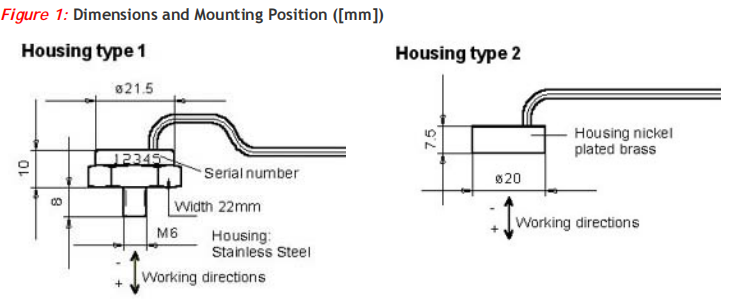

Compact housing, less than 1” diameter
Light weight
Very high overload resistance
Insensitive to interference by magnetic and electric fields
Low cut-off frequency
Linear frequency response with little or no resonant peak at upper cut-off frequency
Low non-linearity
High signal-to-noise ratio
Very low cross-axis sensitivity
Hermetically sealed
High long-term stability
Small temperature drift
Integrated sensor electronics
Long connection leads available Multiple housing options
