Description
The H4 Series of inclinometers provide single axis inclination sensing in a rugged environmentally protected metal housing. The sensing package incorporates a liquid capacitive sensing element and integrated temperature compensation over the industrial operating range of –40° to +85°C. These sensors are available with a choice of two output configurations, analog voltage or digital serial outputs. These outputs are linear with respect to the input angle directly. Depending on the required accuracy, two levels of temperature compensation are available.

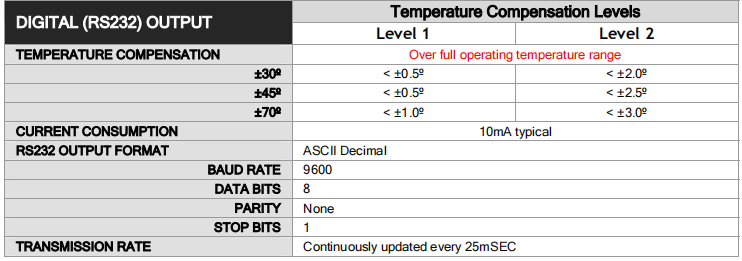

Digital Serial (RS232) Output
The Serial output (RS232) transmits the degree of angle in a decimal format. This output provides a continuous stream of readings - one reading per line at approximately 250msec per reading. The H4 transmits the output to a computer through its serial port, using HyperTerminal as the interface. The unit is configured for 9600 baud, 8 data bits, no parity, 1 stop bit.
Features
Single Axis Angle Measurement

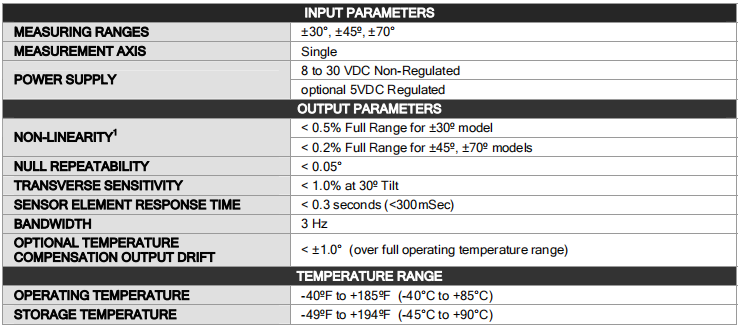

3 Ranges: ±30°, ±45º, ±70°
2 Levels of Temperature Compensation

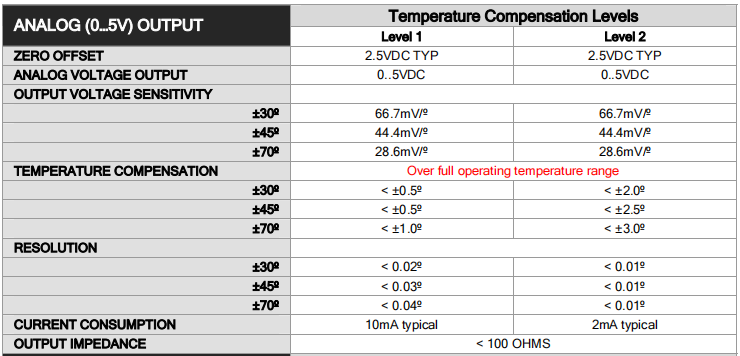

Analog Voltage 0-5V Output
Serial Digital RS232 Output
Vibration and shock resistant
Environmentally sealed to IP66

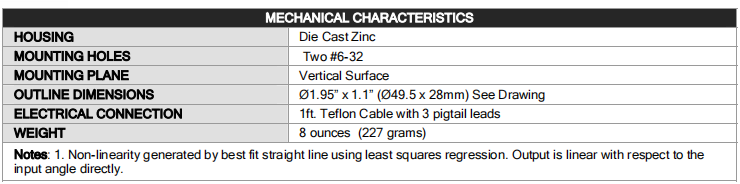

Rugged die-cast Zinc housing
EMC protected Mechanical Zero adjustment
Common footprint for easy field install
Applications
Platform Leveling
Vehicle Tilt Monitoring
Antenna Positioning
Boom Angle Indicating
Process Machinery
