Features
Weatherproof - will not rust or hang up
UV Resistant
Extremely shock and vibration resistant
Easily installed – quick retrofitting
Quick and accurate visual reference
Operational from -50° F to +180° F
Description

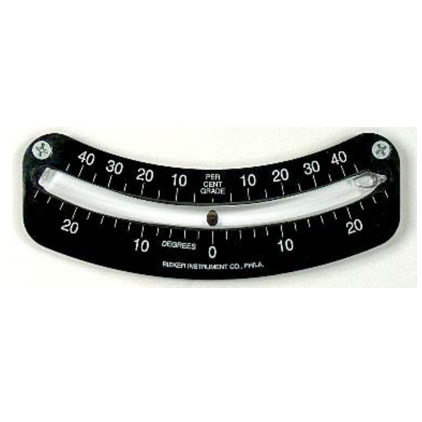

Also called a clinometer or gradiometer, the 2064 Series provide accurate measurement of slope in
Degrees, Percent Grade and Inch Per Foot Rise. Rieker manufacturers these inclinometers to MIL
Spec, using precision glass tube and ball construction. All our tubes are filled with a special
dampening fluid that controls the movement of the ball, for a smooth accurate roll. The fluid
combined with large, clear number and degree markings make it easy to get quick, accurate readings
under a wide variety of severe environmental conditions.

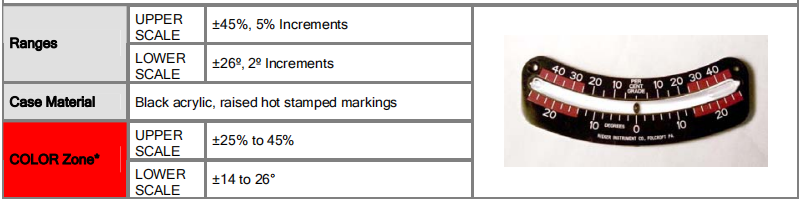

Some models available with customer specified color warning zones. Ask your sales representative.
Applications
These inclinometers are used on utility trucks, aerial lift trucks, cranes, construction equipment,
aircraft, boats, ships, submarines, fire trucks, military and government vehicles for leveling,
balancing and preventing tip-over.
