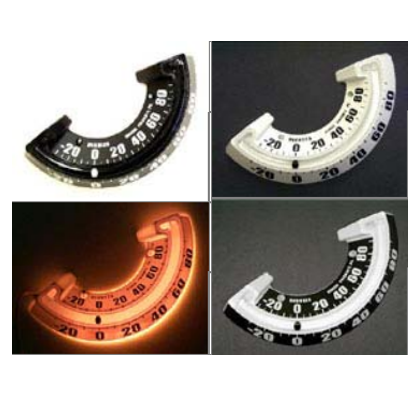

Description
Rieker's rugged manual boom angle indicators- the 4120 Series - are not effected by outdoor elements. These instruments are made tough and will not rust, freeze, or
otherwise "hang up" like old-fashioned pendulum styles. Like all of our manual instruments, each indicator is properly
dampened for smooth reliable readings. The 4120 model is designed for easy mounting with two screws, which allows for quick and efficient retrofitting in the field. The newest addition is the 4120-12v, a highly visible backlit model for increased safety - especially at night!
Features
Oversized inclinometer for easy read
High visibility markings
Hermetically sealed – will not leak
Weatherproof - will not rust or hang up
UV Resistant
Operational from -50° F to +180° F
Extremely shock and vibration resistant
Easily installed – quick retrofitting

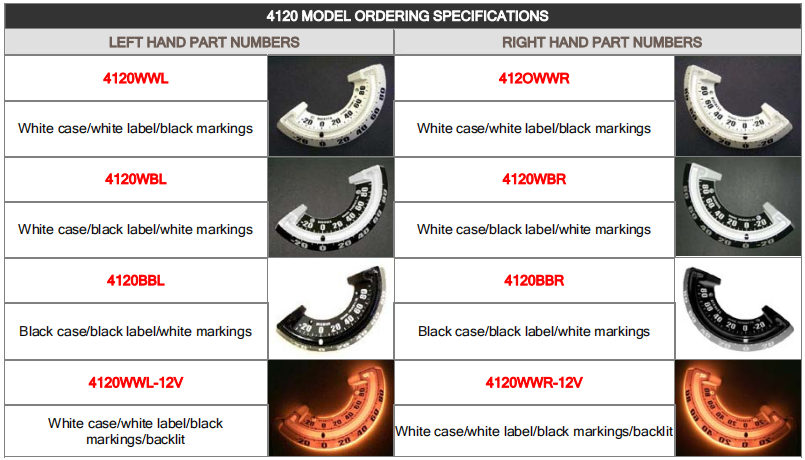

Right hand or left hand models available
Now available with 12 Volt backlighting - highly visible at night for added safety
Applications
The 4120 model is recommended for use on any boom where accurate inclination measurements must be taken under
difficult conditions and harsh environments.

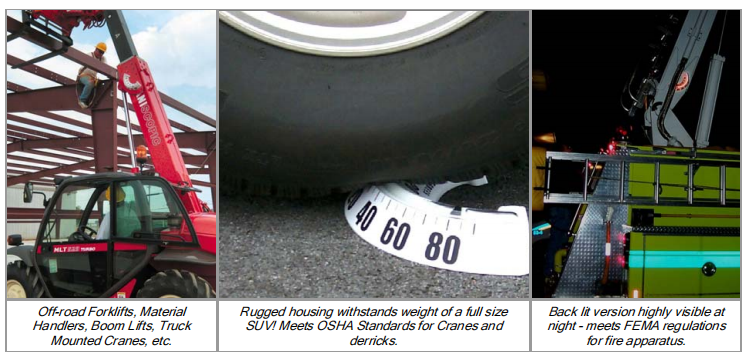

Typical applications include aerial lifts, truck-mounted boom cranes, any fire truck with a mounted boom or ladder,
telescoping off-road variable reach fork lifts, cranes and derricks, or any equipment that requires boom angle indication.
OEMs welcome, quantity pricing available.
