Features
2 Scales: Inch per Ft-Rise and % Grade
Weatherproof - will not rust or hang up
UV Resistant
Easily installed – quick retrofitting
Quick and accurate visual reference
Operational from -50° F to +180° F
Extremely shock and vibration resistant
Description

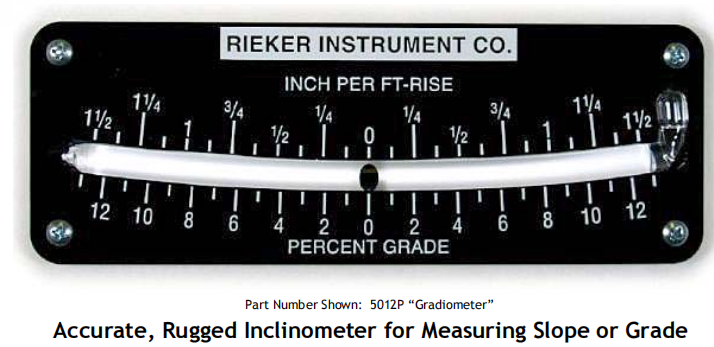

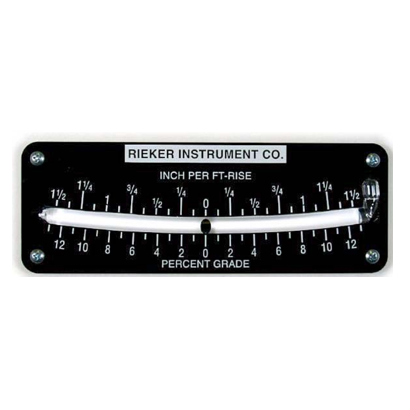

A Gradiometer is any of various surveying instruments for measuring angles of elevation, slope, or incline, as of an embankment or roadway. Also called clinometer or inclinometer, the 5012P provides accurate measurement of slope in Percent Grade and Inch Per Foot Rise. Rieker manufacturers these manual type gradiometers (or inclinometers) using precise glass tube and ball construction. All our tubes are filled with a special dampening fluid that controls the movement of the ball. The fluid combined with large, clear number and degree markings make it easy to get quick, accurate readings under a wide variety of severe environmental conditions.
Applications
Plows, graders, excavators, trenchers, and pavers are only a few examples of the types of applications well suited for gradiometers.
