Overview

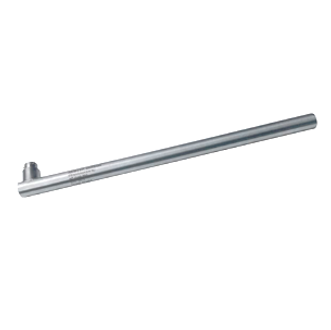

UNIVO UHAR750 series Position sensor adopts rugged sealed AC LVDT, with excellent linearity, high sensitivity and unlimited resolution. These sensors are constructed of 3/4 inch diameter stainless steel and are manufactured for general industrial use. The housing length is reduced by electrical connection through radially mounted connectors. They are suitable for various position measurement applications and can provide a range of ± 0.05 inch (1.27 mm) to ± 10 inch (250 mm). HAR series windings are encapsulated in the housing with two-component epoxy resin, providing excellent protection for harsh environments.
Benefits
Welded 3/4 "sealed steel housing
Radially mounted connector
The measurement range is ± 0.05 to ± 10 inches
Linearity ± 0.15% of full range typical value
Shock and vibration resistance
Wide operating temperature range (- 65 ° F to 275 ° F)
Available in standard and custom models
Applications
Factory Automation
Material testing
Packaging equipment
Valve position sensing
Electrical Data

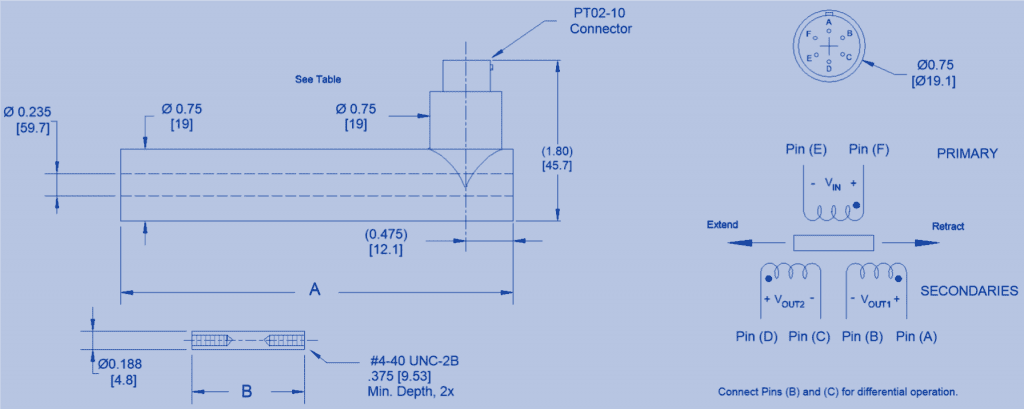

Dimensions
UHAR-750PDF Download：
UHAR-750-Datasheet.pdf
